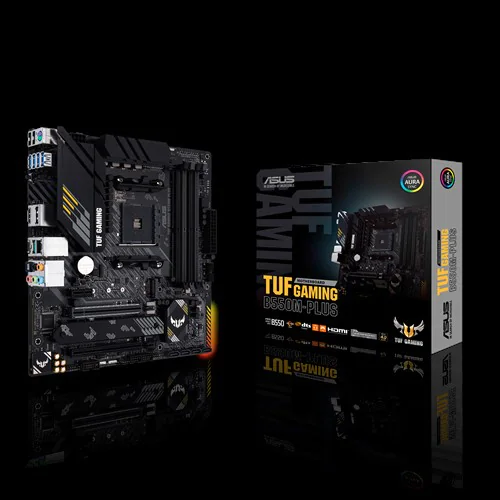

ASUS TUF GAMING B550M-PLUS AM4 mATX ...

Chipset : AMD B550
Supports Central Processor Unit : AMD Ryzen Series
CPU podnožje : Socket AM4
CPU Maximum Quantity Supports : 1
Vrsta memorije : DDR4 SDRAM
Memory Form Factor : DIMM 288-pin
Memory Speed : 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2666MHz(PC4-21300)
2800MHz(PC4-22400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity : 128 GB
Memory Slot Total Quantity : 4
Provides Error Checking Method : ECC
Memory Features : Unbuffered
Integrated : Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe 4.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Wi-Fi Controller:
Intel Wi-Fi 6 AX200 PCI-Express ()
Audio Integrated : yes
Device Location : Integrated
Audio Chipset : Realtek ALC S1200A
Audio Data Width : 24-bit
Audio Output Mode : 7.1 Channel Surround
Compliant Audio Standards : DTS
High Definition Audio
LAN Integrated : yes
LAN Chipset : Realtek RTL8125B
Wi-Fi : IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n Wi-Fi 4
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6
Bluetooth : Bluetooth 5.1
Data Link Protocol Supports : 2.5 Gbps
PCI Express 3.0 x16 : 1
PCI Express 3.0 x1 : 1
PS/2 : 1
DisplayPort : 1
HDMI : 1 (HDMI (Type A))
LAN : 1 (RJ-45)
USB 3.2 Gen 2 : 1 (USB 3.2 (type C)); 1 (USB 3.2 (type A))
USB 3.2 Gen 1 : 4 (USB 3.1 (type A))
USB 2.0 : 2 (4-pin USB (type A))
S/PDIF-out Optical : 1
Audio Interface : 5 (3.5-mm minijack)
BIOS Type : AMI
BIOS Features : UEFI
PXE boot
256 Mb Flash ROM
Power Connectors Type : 24+8 pin
Mainboard Features : AMD 2-Way CrossFire Technology
Aura Sync RGB LED
Cable Included : 2 x SATA 6Gb/s Cables
Included Accessories : I/O Shield
User Guide
Screws
DVD Disc
WiFi antenna
Form Factor : Micro ATX
Height (mm) : 244 mm
Width (mm) : 244 mm
Warranty Products Returnable : Yes
Warranty Term (month) : 36 month(s)
Warranty validation Criteria : Serial Number
Pack Weight Brutto (kg) : 1 kg
Pack Weight Netto (kg) : 1 kg
Pieces in pack : 1
Box Weight Brutto (kg) : 1 kg
Retail Packaging Net Weight Carton : 1 kg
Retail Packaging Net Weight Plastic : 1 kg
Packs in Box : 1
Package Type : Box
EAN Code : 4718017623544
